A square-edged wall mount hinge with an offset back plate for frameless glass shower doors.
The CRL Vienna 044 Series Wall Mount Offset Back Plate Hinge (V1E044) is a wall mount hinge for frameless glass shower doors; it fits 3/8" to 1/2" glass, and needs a mouse-ear notch 3" long x 1-13/16" deep, holes 2-3/4" apart in the glass. Made by C.R. Laurence (CRL) in 11 finishes, including polished chrome, brushed nickel, matte black.

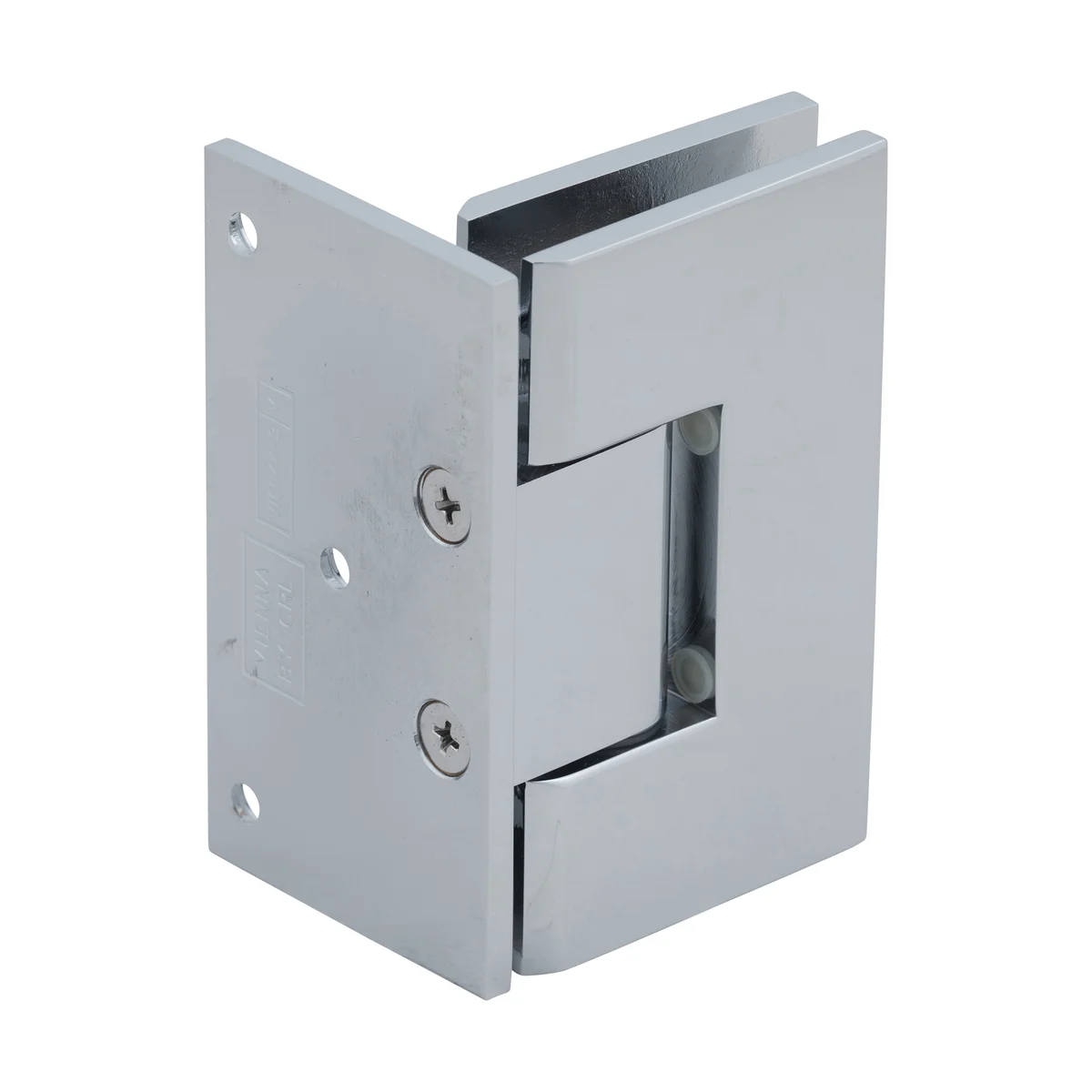

The CRL Vienna 044 Series Wall Mount Offset Back Plate Hinge (V1E044). It mounts the door to the wall with an offset back plate. It fits 3/8" to 1/2" thick tempered glass. Two hinges hold a door up to 100 lb; three hold up to 130 lb. The part that clamps onto the glass is 3-15/16" x 2-1/4" (tall x wide). The glass needs a mouse-ear notch 3" long x 1-13/16" deep, holes 2-3/4" apart, per CRL's template. It takes the same glass cut-out as the Cologne 037, Cologne 044, Cologne 045, Cologne 067 and others. Made of brass.
| Finishes | 11 |
|---|---|
| CRL model | V1E044 |
| Size on the glass (tall x wide) | 3-15/16" x 2-1/4" |
| Glass cut-out | A mouse-ear notch 3" long x 1-13/16" deep, holes 2-3/4" apart |
| Max door weight | 100 lb with 2 hinges, 130 lb with 3 |
| 5 Degree Pre-Set | No |
| Adjustable | No |
| Back Plate | Offset |
| Design Style | Squared |
| Enclosure Type | Corner, Niche, Bathtub, Tailor Made Solutions |
| Glazing Thickness | 3/8 in. to 1/2 in. (10 mm to 12 mm) |
| Height | 3-15/16 in. (100 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight - 2 Hinges | 100 lbs. (45.4 kg) |
| Maximum Door Weight - 3 Hinges | 130 lbs. (59 kg) |
| Maximum Door Width - 1/2 Glass | 32 in. (813 mm) |
| Maximum Door Width - 1/2 Glass - 2 Hinges | 32 in. (813 mm) |
| Maximum Door Width - 1/2 Glass - 3 Hinges | 32 in. (813 mm) |
| Maximum Door Width - 3/8 Glass | 34 in. (864 mm) |
| Maximum Door Width - 3/8 Glass - 2 Hinges | 34 in. (864 mm) |
| Maximum Door Width - 3/8 Glass - 3 Hinges | 34 in. (864 mm) |
| Maximum Door Width -1/2 Glass | 32 |
| Mounting Type | Wall Mount |
| Opening Style | Swing(side) |
| Self-Centering | Yes |
| Series | Vienna |
| Width | 2-1/4 in. (57 mm) |
This hinge needs a mouse-ear notch 3" long x 1-13/16" deep, holes 2-3/4" apart in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Same cut-out (27): these fit the same glass.
Really happy with this hinge. Solid brass construction, smooth action, and it looks great on the shower door.
Nice solid hinge. Door movement is smooth and the finish matches well with the rest of the hardware. Overall very satisfied.
3/8" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
A mouse-ear notch 3" long x 1-13/16" deep, holes 2-3/4" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.

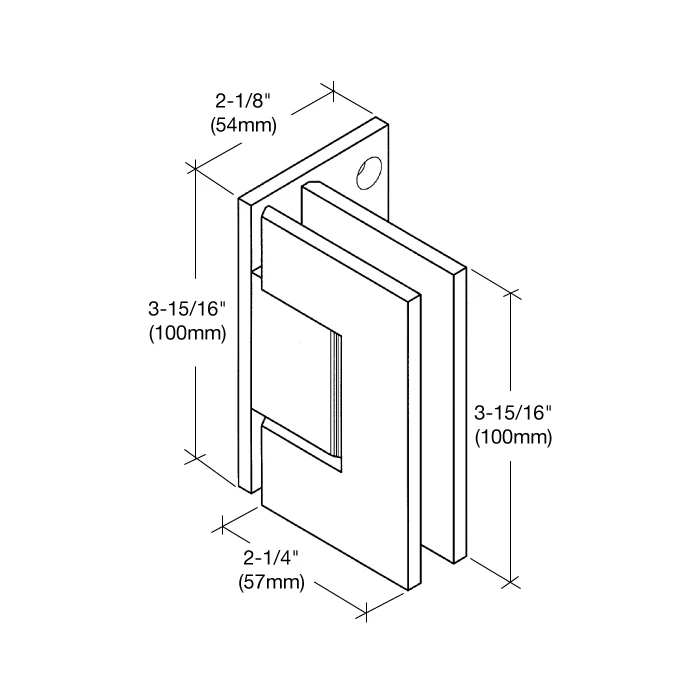

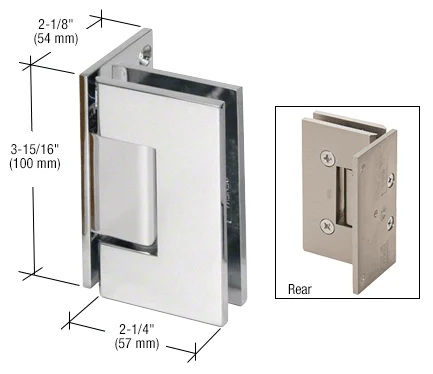

The part that clamps onto the glass is 3-15/16" x 2-1/4" (tall x wide).
This is one hinge. Most doors hang on two; two of these hold a door up to 100 lb, three hold up to 130 lb.
Shower Door Hinge – Trento 337 Adjustable Wall Mount, Full Back Plate; Shower Door Hinge – Cologne 044 Wall Mount, Offset Back Plate; Shower Door Hinge – Vienna 037 Wall Mount, Full Back Plate; Shower Door Hinge – Cologne 037 Wall Mount, H Back Plate; Glass to Glass Shower Door Hinge 180° – Vienna 180; Shower Door Hinge – Vienna 337 Adjustable Wall Mount, Full Back Plate, and 21 more. Hinges that share a cut-out can replace each other on the same glass.
Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Satin Brass, Oil Rubbed Bronze, Brushed Bronze, Satin Nickel, Polished Brass, Unlacquered Brass, Gun Metal. Match the finish of the hinges and other hardware on your shower.
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
