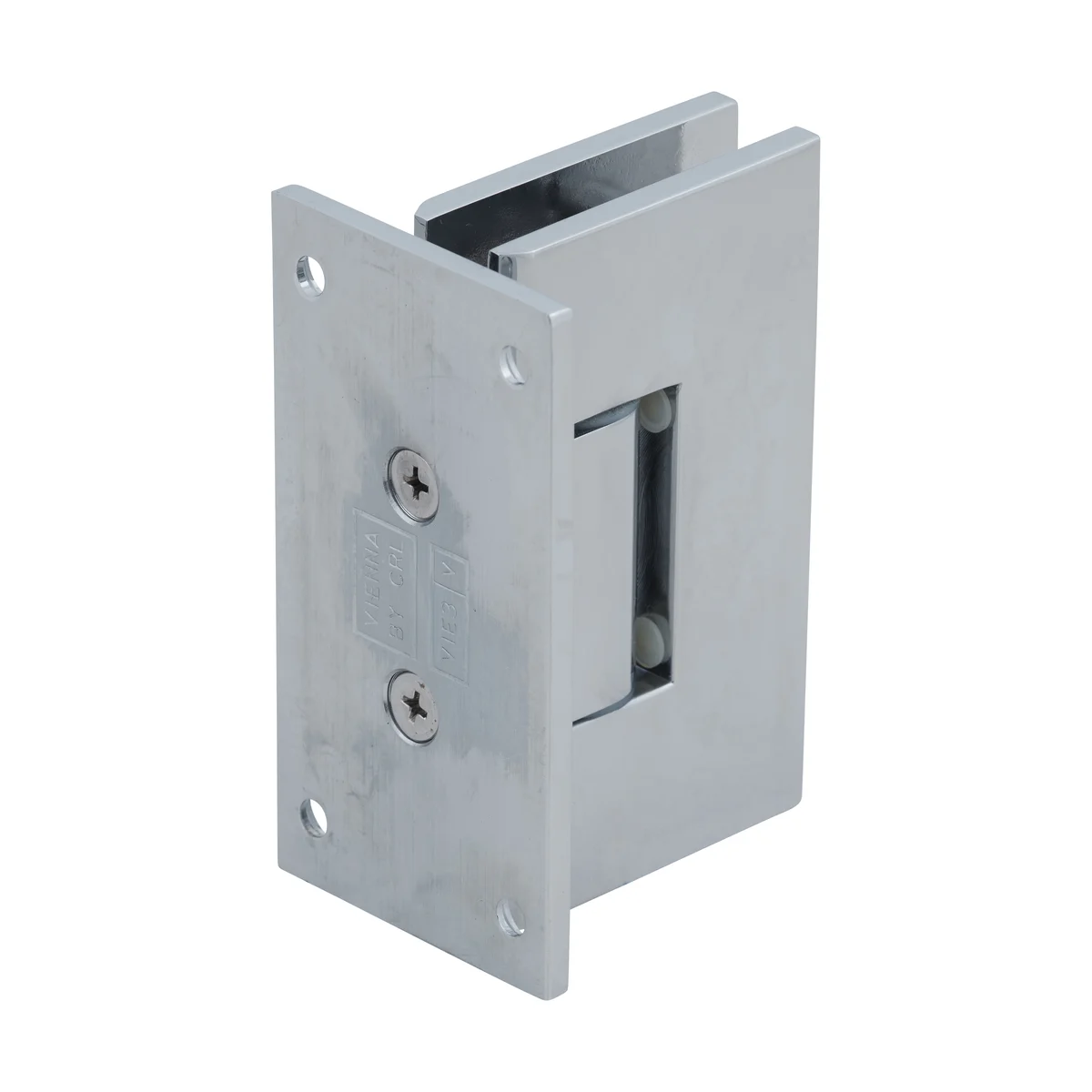

Shower Door Hinge – Vienna 337 Adjustable Wall Mount, Full Back Plate — Polished Chrome
A square-edged wall mount hinge with a full back plate for frameless glass shower doors.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge
The CRL Vienna 337 Series Adjustable Wall Mount Full Back Plate Hinge (V1E337) is a wall mount hinge for frameless glass shower doors; it fits 3/8" to 1/2" glass, and needs a mouse-ear notch 3" long x 1-13/16" deep, holes 2-3/4" apart in the glass. Made by C.R. Laurence (CRL) in 17 finishes, including polished chrome, brushed nickel, matte black.
The CRL Vienna 337 Series Adjustable Wall Mount Full Back Plate Hinge (V1E337). It mounts the door to the wall with a full back plate. It fits 3/8" to 1/2" thick tempered glass. Two hinges hold a door up to 110 lb and 36" wide; three hold up to 140 lb. The part that clamps onto the glass is 3-15/16" x 2-1/4" (tall x wide). The glass needs a mouse-ear notch 3" long x 1-13/16" deep, holes 2-3/4" apart, per CRL's template. It takes the same glass cut-out as the Cologne 037, Cologne 044, Cologne 045, Cologne 067 and others. Made of brass.
- Fits 3/8" to 1/2" glass
- Holds a door up to 110 lb with 2 hinges
- Doors up to 36" wide
- 3-15/16" x 2-1/4" on the glass
- Glass cut-out: a mouse-ear notch 3" long x 1-13/16" deep, holes 2-3/4" apart
- Adjustable, to fine-tune the door after it is hung
Specs
| Finishes | 17 |
|---|---|
| CRL model | V1E337 |

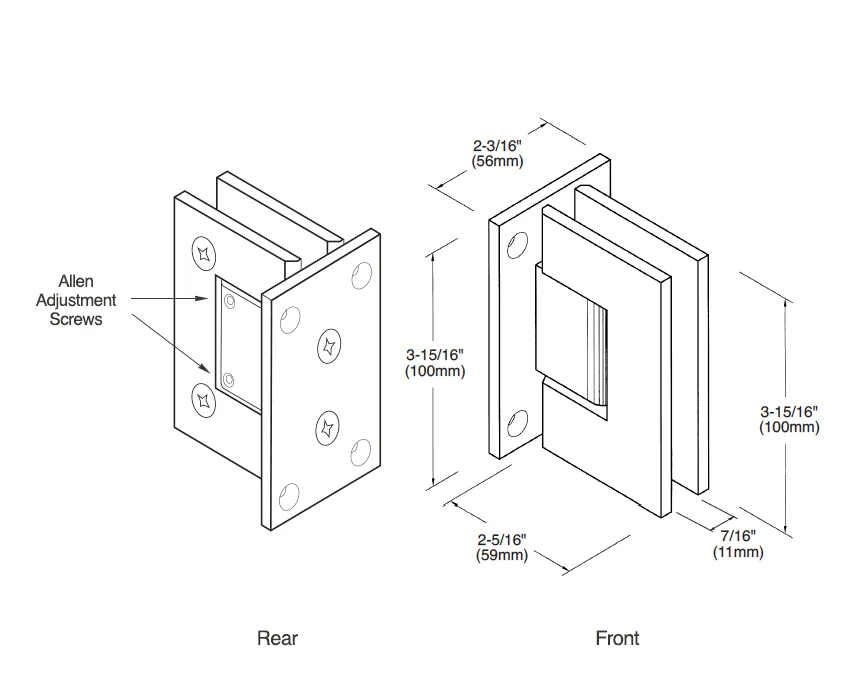

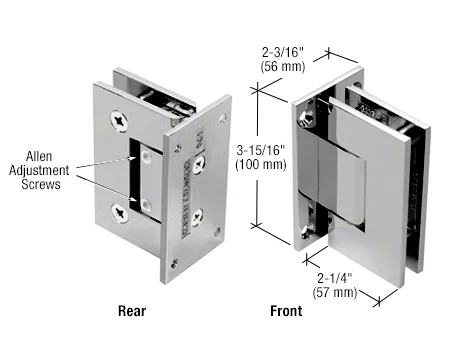

| Size on the glass (tall x wide) | 3-15/16" x 2-1/4" |
| Glass cut-out | A mouse-ear notch 3" long x 1-13/16" deep, holes 2-3/4" apart |
| Max door weight | 110 lb with 2 hinges, 140 lb with 3 |
| Max door width | 36" |
| 5 Degree Pre-Set | No |
| Adjustable | Yes |
| Back Plate | Full |
| Design Style | Squared |
| Enclosure Type | Corner, Niche, Bathtub, Tailor Made Solutions |
| Glazing Thickness | 3/8" (10mm) to 1/2 in. (12 mm) |
| Height | 3-15/16 in. (100 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight - 2 Hinges | 110 lbs. (49.9 kg) |
| Maximum Door Weight - 3 Hinges | 140 lbs. (63.5 kg) |
| Maximum Door Width | 36 in. (914 mm) |
| Mounting Type | Wall Mount |
| Opening Style | Swing(side) |
| Positive Close | No |
| Self-Centering | Yes |
| Series | Vienna |
| Width | 2-1/4 in. (57 mm) |
Glass cut-out
This hinge needs a mouse-ear notch 3" long x 1-13/16" deep, holes 2-3/4" apart in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Same cut-out (27): these fit the same glass.
- Shower Door Hinge – Trento 337 Adjustable Wall Mount, Full Back Plate
- Shower Door Hinge – Cologne 044 Wall Mount, Offset Back Plate
- Shower Door Hinge – Vienna 037 Wall Mount, Full Back Plate
- Shower Door Hinge – Cologne 037 Wall Mount, H Back Plate
- Shower Door Hinge – Vienna 044 Wall Mount, Offset Back Plate
- Glass to Glass Shower Door Hinge 180° – Vienna 180
- Shower Door Hinge – Cologne 337 Adjustable Wall Mount, H Back Plate
- Shower Door Hinge – Vienna 074 Wall Mount, Short Back Plate
- Shower Door Hinge – Cologne 537 5° Pre-Set Wall Mount, H Back Plate
- Shower Door Hinge – Vienna 537 5° Pre-Set Wall Mount, Full Back Plate
- Glass to Glass Shower Door Hinge 180° – Cologne 180
- Glass to Glass Shower Door Hinge 180° – Vienna 580 5° Pre-Set
- Shower Door Hinge – Vienna 037 Wall Mount, H Back Plate
- Glass to Glass Shower Door Hinge 135° – Vienna 045
- Shower Door Hinge – Vienna 344 Adjustable, Offset Back Plate
- Shower Door Hinge – Vienna 544 5° Pre-Set, Offset Back Plate
- Glass to Glass Shower Door Hinge 90° – Vienna 092
- Glass to Glass Shower Door Hinge 135° – Cologne 045
- Shower Door Hinge – Cologne 544 5° Pre-Set, Offset Back Plate
- Glass to Glass Shower Door Hinge 180° – Cologne 380 Adjustable
- Glass to Glass Shower Door Hinge 180° – Vienna 380 Adjustable
- Glass to Glass Shower Door Hinge 90° – Cologne 092
- Glass to Glass Shower Door Hinge 180° – Vienna 780 Positive Close
- Glass to Glass Shower Door Hinge 180° – Cologne 780 Positive Close
- Shower Door Hinge – Trento 044 Wall Mount, Offset Back Plate
- Shower Door Hinge – Trento 037 Wall Mount, Full Back Plate
- Shower Door Hinge – Cologne 067 Positive Close, H Back Plate
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL V1E337 hinge fit?
3/8" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
What glass cut-out does it need?
A mouse-ear notch 3" long x 1-13/16" deep, holes 2-3/4" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
How big is the hinge on the glass?
The part that clamps onto the glass is 3-15/16" x 2-1/4" (tall x wide).
How many hinges do I need?
This is one hinge. Most doors hang on two; two of these hold a door up to 110 lb and 36" wide, three hold up to 140 lb.
Which other hinges use the same cut-out?
Shower Door Hinge – Trento 337 Adjustable Wall Mount, Full Back Plate; Shower Door Hinge – Cologne 044 Wall Mount, Offset Back Plate; Shower Door Hinge – Vienna 037 Wall Mount, Full Back Plate; Shower Door Hinge – Cologne 037 Wall Mount, H Back Plate; Shower Door Hinge – Vienna 044 Wall Mount, Offset Back Plate; Glass to Glass Shower Door Hinge 180° – Vienna 180, and 21 more. Hinges that share a cut-out can replace each other on the same glass.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Satin Brass, Oil Rubbed Bronze, Brushed Bronze, Satin Nickel, Brushed Chrome, Polished Brass, Unlacquered Brass, Modern Gold, French Gold, Vintage Brass, Rose Gold, Matte Gun Metal, Dark Brushed Bronze. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
