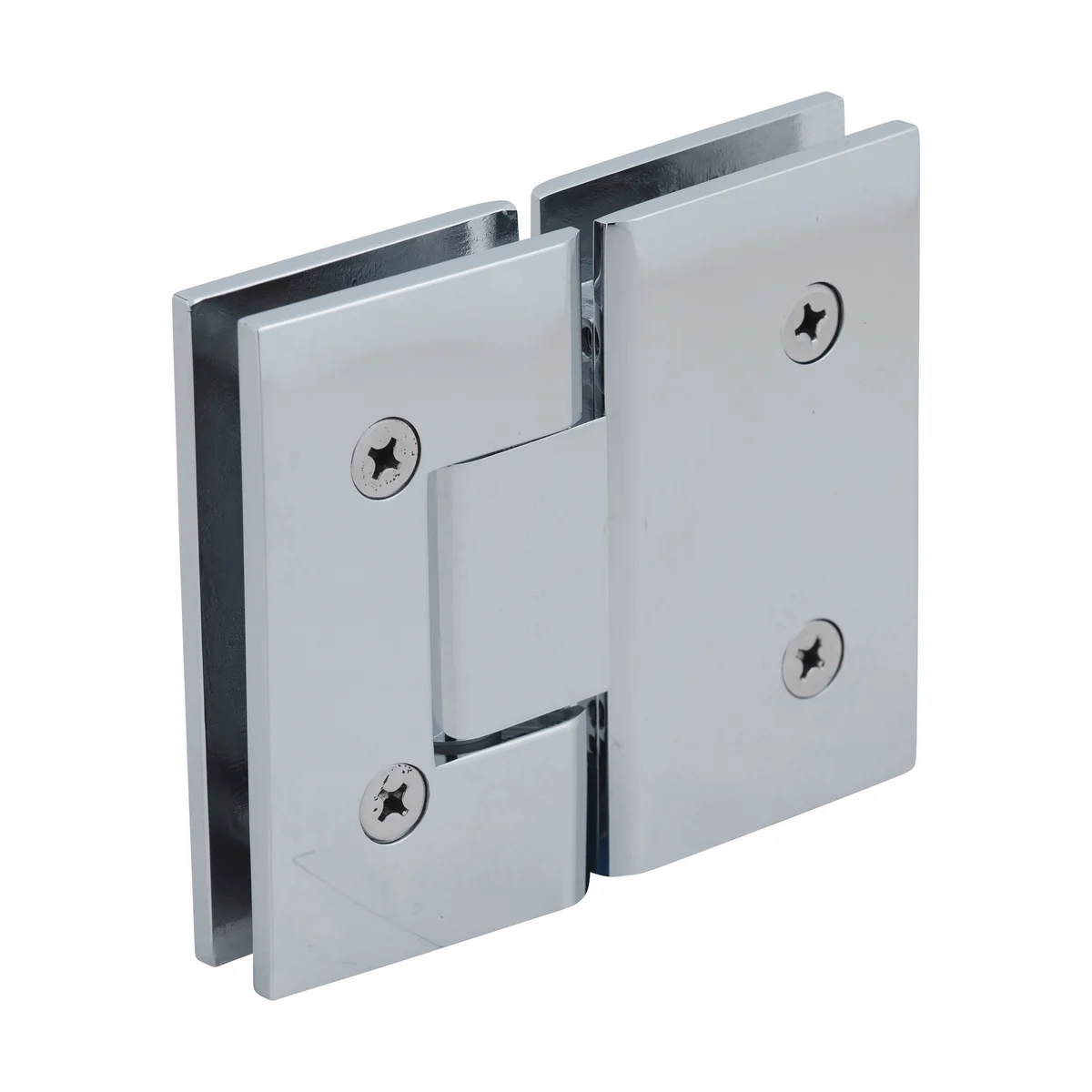

A square-edged 180° glass-to-glass hinge that hangs a frameless door from a fixed glass panel.
The CRL Vienna 180 Series Glass-to-Glass Hinge (V1E180) is a glass-to-glass hinge for frameless glass shower doors; it fits 3/8" to 1/2" glass, and needs a mouse-ear notch 3" long x 1-13/16" deep, holes 2-3/4" apart in the glass. Made by C.R. Laurence (CRL) in 20 finishes, including polished chrome, brushed nickel, matte black.
The CRL Vienna 180 Series Glass-to-Glass Hinge (V1E180). It hangs the door from a fixed glass panel at 180° (in line with the panel). It fits 3/8" to 1/2" thick tempered glass. Two hinges hold a door up to 110 lb and 36" wide; three hold up to 140 lb. The part that clamps onto the glass is 3-15/16" tall. The glass needs a mouse-ear notch 3" long x 1-13/16" deep, holes 2-3/4" apart, per CRL's template. It takes the same glass cut-out as the Cologne 037, Cologne 044, Cologne 045, Cologne 067 and others. Made of brass.
| Finishes | 20 |
|---|---|
| CRL model | V1E180 |
| Size on the glass (tall x wide) | 3-15/16" tall |
| Glass cut-out | A mouse-ear notch 3" long x 1-13/16" deep, holes 2-3/4" apart |
| Max door weight | 110 lb with 2 hinges, 140 lb with 3 |
| Max door width | 36" |
| 5 Degree Pre-Set | No |
| Adjustable | No |
| Design Style | Squared |
| Edge Profile | Square |
| Enclosure Type | Niche, Bathtub, Tailor Made Solutions |
| Glass To Glass Angle | 180 |
| Glazing Thickness | 3/8 in. to 1/2 in. (10 mm to 12 mm) |

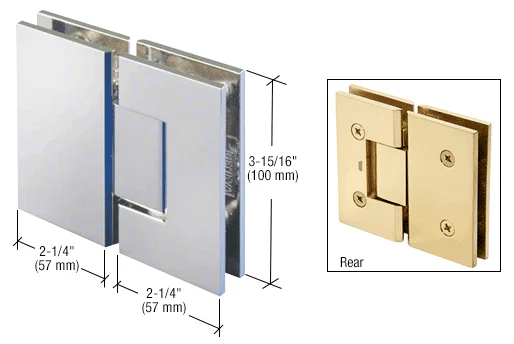

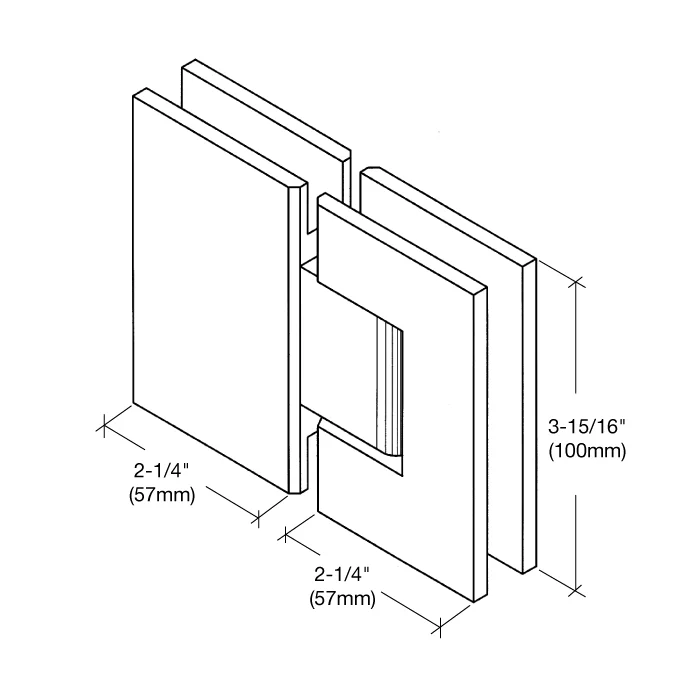

| Height | 3-15/16 in. (100 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight - 2 Hinges | 110 lbs. (49.9 kg) |
| Maximum Door Weight - 3 Hinges | 140 lbs. (63.5 kg) |
| Maximum Door Width | 36 in. (914 mm) |
| Mounting Type | Glass To Glass |
| Opening Style | Swing(side) |
| Positive Close | No |
| Self-Centering | Yes |
| Series | Vienna |
| Width - Door Portion | 2-1/4 in. (57 mm) |
| Width - Sidelite Portion | 2-1/4 in. (57 mm) |
This hinge needs a mouse-ear notch 3" long x 1-13/16" deep, holes 2-3/4" apart in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Same cut-out (27): these fit the same glass.
Installed easily and works perfectly. Feels like a premium piece of hardware. Overall very satisfied.
3/8" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
A mouse-ear notch 3" long x 1-13/16" deep, holes 2-3/4" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
The part that clamps onto the glass is 3-15/16" tall.
This is one hinge. Most doors hang on two; two of these hold a door up to 110 lb and 36" wide, three hold up to 140 lb.
Shower Door Hinge – Trento 337 Adjustable Wall Mount, Full Back Plate; Shower Door Hinge – Cologne 044 Wall Mount, Offset Back Plate; Shower Door Hinge – Vienna 037 Wall Mount, Full Back Plate; Shower Door Hinge – Cologne 037 Wall Mount, H Back Plate; Shower Door Hinge – Vienna 044 Wall Mount, Offset Back Plate; Shower Door Hinge – Vienna 337 Adjustable Wall Mount, Full Back Plate, and 21 more. Hinges that share a cut-out can replace each other on the same glass.
Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Satin Brass, Oil Rubbed Bronze, Brushed Bronze, Satin Nickel, Brushed Chrome, Polished Brass, Unlacquered Brass, Modern Gold, French Gold, Vintage Brass, Rose Gold, Gun Metal, Matte Gun Metal, Dark Brushed Bronze, Antique Brass, Antique Bronze. Match the finish of the hinges and other hardware on your shower.
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
