A square-edged wall mount hinge with an 'H' back plate for frameless glass shower doors.
The CRL Vienna 037 Series Wall Mount 'H' Back Plate Hinge (V1EH037) is a wall mount hinge for frameless glass shower doors; it fits 1/2" glass, and needs a mouse-ear notch or a rectangular notch 3" long x 1-13/16" deep, holes 2-3/4" apart in the glass. Made by C.R. Laurence (CRL) in 5 finishes, including polished chrome, brushed nickel, matte black.
The CRL Vienna 037 Series Wall Mount 'H' Back Plate Hinge (V1EH037). It mounts the door to the wall with an 'H' back plate. It fits 1/2" thick tempered glass. Two hinges hold a door up to 110 lb and 36" wide; three hold up to 140 lb. The part that clamps onto the glass is 3-15/16" x 2-1/4" (tall x wide). The glass needs a mouse-ear notch or a rectangular notch 3" long x 1-13/16" deep, holes 2-3/4" apart, per CRL's template. It takes the same glass cut-out as the Cologne 037, Cologne 044, Cologne 045, Cologne 067 and others. Made of brass.
| Finishes | 5 |
|---|---|
| CRL model | V1EH037 |
| Size on the glass (tall x wide) | 3-15/16" x 2-1/4" |
| Glass cut-out | A mouse-ear notch or a rectangular notch 3" long x 1-13/16" deep, holes 2-3/4" apart |
| Max door weight | 110 lb with 2 hinges, 140 lb with 3 |
| Max door width | 36" |
| 5 Degree Pre-Set | No |
| Adjustable | No |
| Back Plate | 'H' |
| Design Style | Squared |
| Enclosure Type | Corner, Niche, Bathtub, Tailor Made Solutions |
| Glazing Thickness | 1/2 in. (12 mm) |
| Height | 3-15/16 in. (100 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight - 2 Hinges | 110 lbs. (49.9 kg) |
| Maximum Door Weight - 3 Hinges | 140 lbs. (63.5 kg) |
| Maximum Door Width | 36 in. (914 mm) |
| Mounting Type | Wall Mount |
| Opening Style | Swing(side) |
| Self-Centering | Yes |
| Series | Vienna |
| Width | 2-1/4 in. (57 mm) |
This hinge needs a mouse-ear notch or a rectangular notch 3" long x 1-13/16" deep, holes 2-3/4" apart in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Same cut-out (27): these fit the same glass.
Good weight and solid construction. Door movement feels controlled and quiet.
1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
A mouse-ear notch or a rectangular notch 3" long x 1-13/16" deep, holes 2-3/4" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.

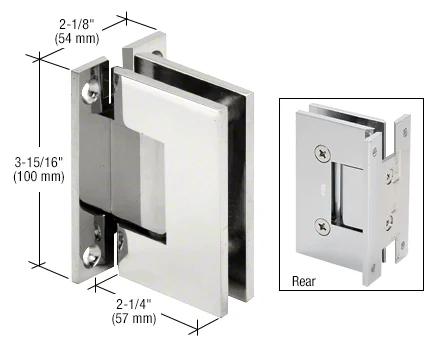

The part that clamps onto the glass is 3-15/16" x 2-1/4" (tall x wide).
This is one hinge. Most doors hang on two; two of these hold a door up to 110 lb and 36" wide, three hold up to 140 lb.
Shower Door Hinge – Trento 337 Adjustable Wall Mount, Full Back Plate; Shower Door Hinge – Cologne 044 Wall Mount, Offset Back Plate; Shower Door Hinge – Vienna 037 Wall Mount, Full Back Plate; Shower Door Hinge – Cologne 037 Wall Mount, H Back Plate; Shower Door Hinge – Vienna 044 Wall Mount, Offset Back Plate; Glass to Glass Shower Door Hinge 180° – Vienna 180, and 21 more. Hinges that share a cut-out can replace each other on the same glass.
Polished Chrome, Brushed Nickel, Matte Black, Oil Rubbed Bronze, Polished Brass. Match the finish of the hinges and other hardware on your shower.
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
