Pivot Shower Door Hinge – Prima 03 Wall Mount — Matte Black
A beveled pivot hinge for frameless shower doors that mounts to the wall.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge
The CRL Prima 03 Series Wall Mount Hinge (PPH03) is a pivot hinge for frameless glass shower doors; it fits 5/16" to 3/8" glass, and needs a corner notch 2-15/16" long x 1-1/2" deep, holes 1-7/8" apart in the glass. Made by C.R. Laurence (CRL) in matte black.
The CRL Prima 03 Series Wall Mount Hinge (PPH03). It is a pivot hinge: the door turns on a pin instead of hanging from the side, and this one mounts to the wall. It fits 5/16" to 3/8" thick tempered glass. It holds a door up to 100 lb and 31" wide. The part that clamps onto the glass is 2" x 3-5/8" (tall x wide). The glass needs a corner notch 2-15/16" long x 1-1/2" deep, holes 1-7/8" apart, per CRL's template. It takes the same glass cut-out as the Cardiff 01, Cardiff 02, Cardiff 07, Prima 01 and others. Made of brass.
- Fits 5/16" to 3/8" glass
- Holds a door up to 100 lb
- Doors up to 31" wide
- 2" x 3-5/8" on the glass
- Glass cut-out: a corner notch 2-15/16" long x 1-1/2" deep, holes 1-7/8" apart
- Self-centering: returns the door to closed
Specs
| Finishes | 1 |
|---|---|
| CRL model | PPH03 |

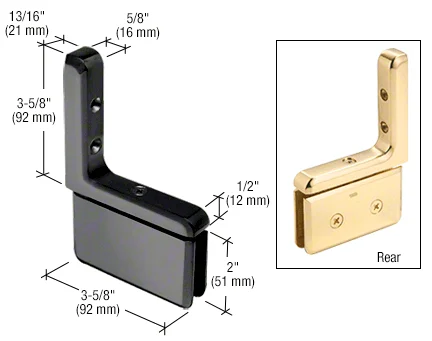

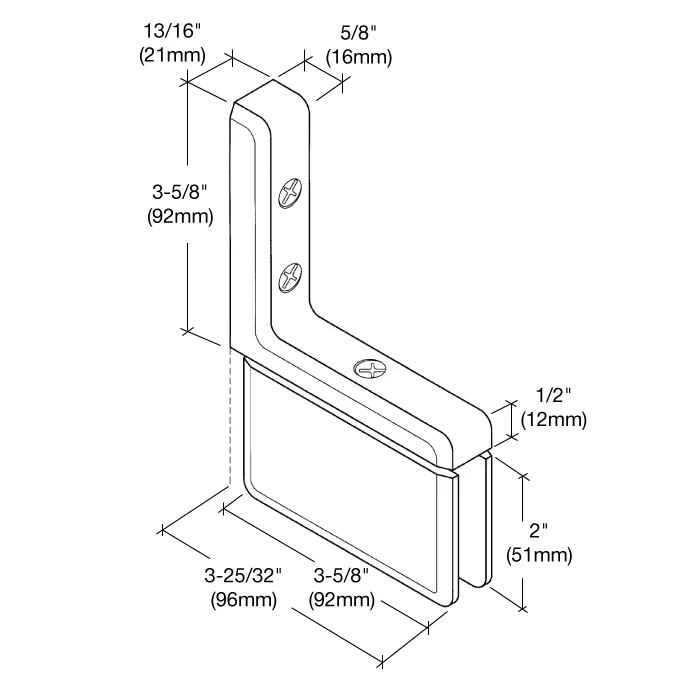

| Size on the glass (tall x wide) | 2" x 3-5/8" |
| Glass cut-out | A corner notch 2-15/16" long x 1-1/2" deep, holes 1-7/8" apart |
| Max door weight | 100 lb |
| Max door width | 31" |
| Design Style | Beveled |
| Edge Profile | Beveled |
| Enclosure Type | Corner, Niche, Tailor Made Solutions |
| Glazing Thickness | 5/16 in. To 3/8 in. (8 mm To 10 mm) |
| Handing | Field Reversible |
| Height | 2 in. (51 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight | 100 lbs. (45.4 kg) |
| Maximum Door Width | 31 in. (787 mm) |
| Mounting Type | Wall Mount |
| Opening Style | Pivot(floor) |
| Self-Centering | Yes |
| Series | Prima |
| Width | 3-5/8 in. (92 mm) |
Glass cut-out
This hinge needs a corner notch 2-15/16" long x 1-1/2" deep, holes 1-7/8" apart in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Same cut-out (15): these fit the same glass.
- Pivot Shower Door Hinge – Prima 01 Top or Bottom Mount
- Pivot Shower Door Hinge – Cardiff Top or Bottom Mount
- Pivot Shower Door Hinge – Prima 06 EZ-Adjust Top Mount
- Pivot Shower Door Hinge – Prima 01 #2 Pin, Top Right or Bottom Left
- Pivot Shower Door Hinge – Prima 01 #1 Pin, Top Left or Bottom Right
- Pivot Shower Door Hinge – Prima 05 Right Hand Offset Mount
- Pivot Shower Door Hinge – Prima Top or Bottom Mount with U-Clamp
- Pivot Shower Door Hinge – Prima 05 Left Hand Offset Mount
- Pivot Shower Door Hinge – Cardiff Glass to Glass Mount
- Pivot Shower Door Hinge – Prima 301 Adjustable Top or Bottom Mount
- Pivot Shower Door Hinge – Prima 02 Glass to Glass Mount
- Pivot Shower Door Hinge – Prima with Rear Drip Plate
- Pivot Shower Door Hinge – Cardiff Top or Bottom Mount with U-Clamp
- Pivot Shower Door Hinge – Prima Left Hand 135° with U-Clamp
- Pivot Shower Door Hinge – Prima Right Hand 135° with U-Clamp
Complete the look in Matte Black
Common questions
What glass thickness does the CRL PPH03 hinge fit?
5/16" to 3/8" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
What glass cut-out does it need?
A corner notch 2-15/16" long x 1-1/2" deep, holes 1-7/8" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
How big is the hinge on the glass?
The part that clamps onto the glass is 2" x 3-5/8" (tall x wide).
How many hinges do I need?
This is one pivot hinge. A pivot door turns on two: one at the top and one at the bottom of the door.
Which other hinges use the same cut-out?
Pivot Shower Door Hinge – Prima 01 Top or Bottom Mount; Pivot Shower Door Hinge – Cardiff Top or Bottom Mount; Pivot Shower Door Hinge – Prima 06 EZ-Adjust Top Mount; Pivot Shower Door Hinge – Prima 01 #2 Pin, Top Right or Bottom Left; Pivot Shower Door Hinge – Prima 01 #1 Pin, Top Left or Bottom Right; Pivot Shower Door Hinge – Prima 05 Right Hand Offset Mount, and 9 more. Hinges that share a cut-out can replace each other on the same glass.
What finishes does it come in?
Matte Black. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
