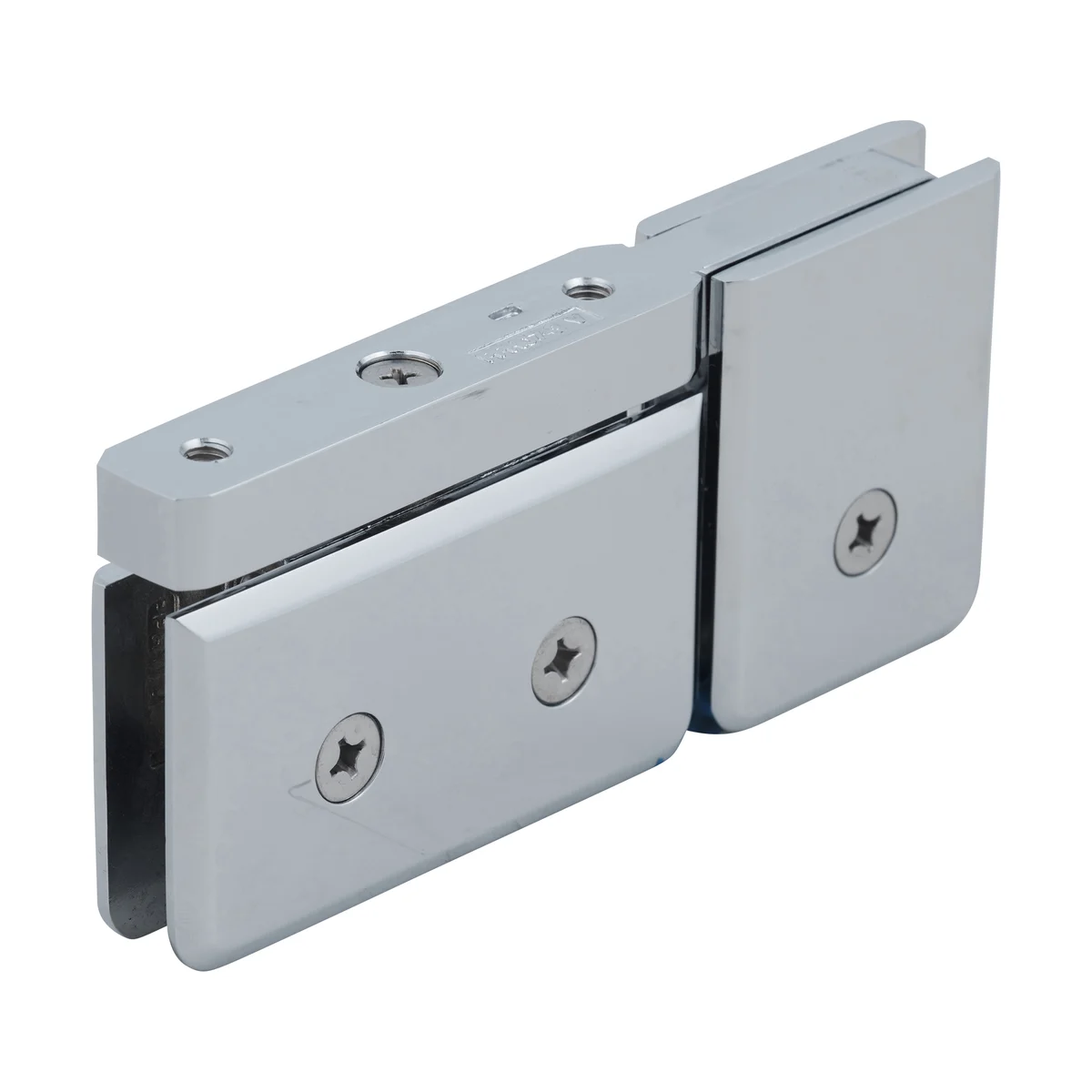

Pivot Shower Door Hinge – Prima Top or Bottom Mount with U-Clamp — Polished Chrome
A beveled pivot hinge for frameless shower doors that clamps to a fixed glass panel with its attached U-clamp.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this hinge
The CRL Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp (PPH07) is a pivot hinge for frameless glass shower doors; it fits 5/16" to 3/8" glass, and needs a corner notch 2-15/16" long x 1-1/2" deep, holes 1-7/8" apart in the glass. Made by C.R. Laurence (CRL) in 8 finishes, including polished chrome, brushed nickel, matte black.
The CRL Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp (PPH07). It is a pivot hinge: the door turns on a pin instead of hanging from the side, and this one clamps to a fixed glass panel with its attached U-clamp. It fits 5/16" to 3/8" thick tempered glass. It holds a door up to 100 lb and 31" wide. The part that clamps onto the glass is 2-5/8" tall. The glass needs a corner notch 2-15/16" long x 1-1/2" deep, holes 1-7/8" apart, per CRL's template. It takes the same glass cut-out as the Cardiff 01, Cardiff 02, Cardiff 07, Prima 01 and others. Made of brass.
- Fits 5/16" to 3/8" glass
- Holds a door up to 100 lb
- Doors up to 31" wide
- 2-5/8" tall on the glass
- Glass cut-out: a corner notch 2-15/16" long x 1-1/2" deep, holes 1-7/8" apart
- Self-centering: returns the door to closed
Specs
| Finishes | 8 |
|---|---|
| CRL model | PPH07 |

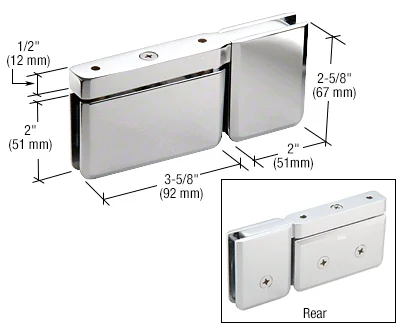

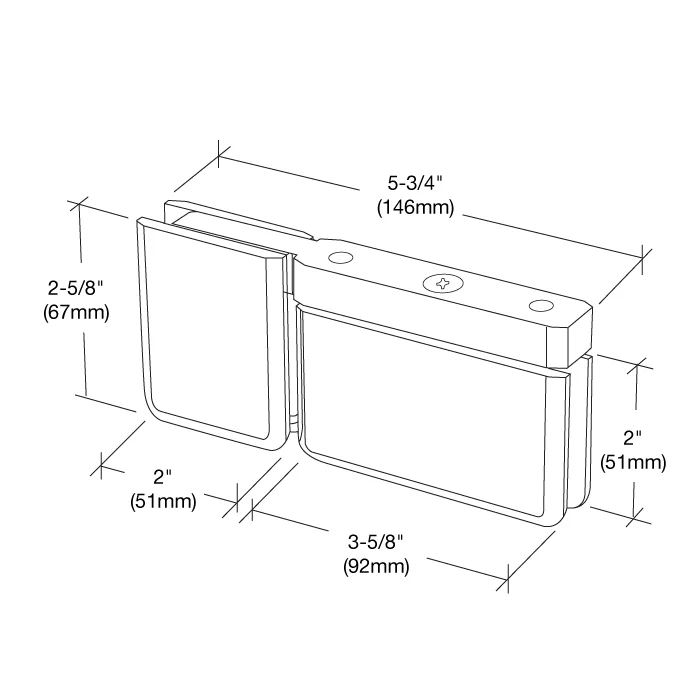

| Size on the glass (tall x wide) | 2-5/8" tall |
| Glass cut-out | A corner notch 2-15/16" long x 1-1/2" deep, holes 1-7/8" apart |
| Max door weight | 100 lb |
| Max door width | 31" |
| Design Style | Beveled |
| Edge Profile | Beveled |
| Enclosure Type | Niche, Tailor Made Solutions |
| Glass To Glass Angle | 180 |
| Glazing Thickness | 5/16 in. To 3/8 in. (8 mm To 10 mm) |
| Handing | Field Reversible |
| Height | 2-5/8 in. (67 mm) |
| Height - Door Portion | 2 |
| Height - Sidelite Portion | 2-5/8 in. (68 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight | 100 lbs. (45.4 kg) |
| Maximum Door Width | 31 in. (787 mm) |
| Mounting Type | Head & Sill Mount |
| Opening Style | Pivot(floor) |
| Self-Centering | Yes |
| Series | Prima |
| Width - Door Portion | 3-5/8 in. (92 mm) |
| Width - Sidelite Portion | 2 |
Glass cut-out
This hinge needs a corner notch 2-15/16" long x 1-1/2" deep, holes 1-7/8" apart in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Same cut-out (15): these fit the same glass.
- Pivot Shower Door Hinge – Prima 01 Top or Bottom Mount
- Pivot Shower Door Hinge – Cardiff Top or Bottom Mount
- Pivot Shower Door Hinge – Prima 06 EZ-Adjust Top Mount
- Pivot Shower Door Hinge – Prima 01 #2 Pin, Top Right or Bottom Left
- Pivot Shower Door Hinge – Prima 01 #1 Pin, Top Left or Bottom Right
- Pivot Shower Door Hinge – Prima 05 Right Hand Offset Mount
- Pivot Shower Door Hinge – Prima 05 Left Hand Offset Mount
- Pivot Shower Door Hinge – Cardiff Glass to Glass Mount
- Pivot Shower Door Hinge – Prima 301 Adjustable Top or Bottom Mount
- Pivot Shower Door Hinge – Prima 02 Glass to Glass Mount
- Pivot Shower Door Hinge – Prima with Rear Drip Plate
- Pivot Shower Door Hinge – Cardiff Top or Bottom Mount with U-Clamp
- Pivot Shower Door Hinge – Prima 03 Wall Mount
- Pivot Shower Door Hinge – Prima Left Hand 135° with U-Clamp
- Pivot Shower Door Hinge – Prima Right Hand 135° with U-Clamp
Complete the look in Polished Chrome
Common questions
What glass thickness does the CRL PPH07 hinge fit?
5/16" to 3/8" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
What glass cut-out does it need?
A corner notch 2-15/16" long x 1-1/2" deep, holes 1-7/8" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
How big is the hinge on the glass?
The part that clamps onto the glass is 2-5/8" tall.
How many hinges do I need?
This is one pivot hinge. A pivot door turns on two: one at the top and one at the bottom of the door.
Which other hinges use the same cut-out?
Pivot Shower Door Hinge – Prima 01 Top or Bottom Mount; Pivot Shower Door Hinge – Cardiff Top or Bottom Mount; Pivot Shower Door Hinge – Prima 06 EZ-Adjust Top Mount; Pivot Shower Door Hinge – Prima 01 #2 Pin, Top Right or Bottom Left; Pivot Shower Door Hinge – Prima 01 #1 Pin, Top Left or Bottom Right; Pivot Shower Door Hinge – Prima 05 Right Hand Offset Mount, and 9 more. Hinges that share a cut-out can replace each other on the same glass.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Satin Brass, Oil Rubbed Bronze, Brushed Bronze, Unlacquered Brass. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
