Strong and reliable hinge. No play in the door and the finish looks consistent.

A beveled pivot hinge for frameless shower doors that clamps to a fixed glass panel with its attached U-clamp.
The CRL LH 135 Degree Prima Hinge with U-Clamp (PPH0735L) is a pivot hinge for frameless glass shower doors; it fits 5/16" to 3/8" glass, and needs a corner notch 2-15/16" long x 1-1/2" deep, holes 1-7/8" apart in the glass. Made by C.R. Laurence (CRL) in 2 finishes, including polished chrome, brushed nickel.

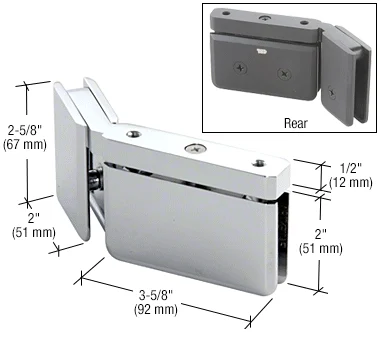

The CRL LH 135 Degree Prima Hinge with U-Clamp (PPH0735L). It is a pivot hinge: the door turns on a pin instead of hanging from the side, and this one clamps to a fixed glass panel with its attached U-clamp. It fits 5/16" to 3/8" thick tempered glass. It holds a door up to 100 lb and 31" wide. The part that clamps onto the glass is 2-5/8" tall. The glass needs a corner notch 2-15/16" long x 1-1/2" deep, holes 1-7/8" apart, per CRL's template. It takes the same glass cut-out as the Cardiff 01, Cardiff 02, Cardiff 07, Prima 01 and others. Made of brass.
| Finishes | 2 |
|---|---|
| CRL model | PPH0735L |
| Size on the glass (tall x wide) | 2-5/8" tall |
| Glass cut-out | A corner notch 2-15/16" long x 1-1/2" deep, holes 1-7/8" apart |
| Max door weight | 100 lb |
| Max door width | 31" |
| Design Style | Beveled |
| Edge Profile | Beveled |
| Enclosure Type | Niche, Tailor Made Solutions |
| Glass To Glass Angle | 135 |
| Glazing Thickness | 5/16 in. To 3/8 in. (8 mm To 10 mm) |
| Handing | Left Hand |

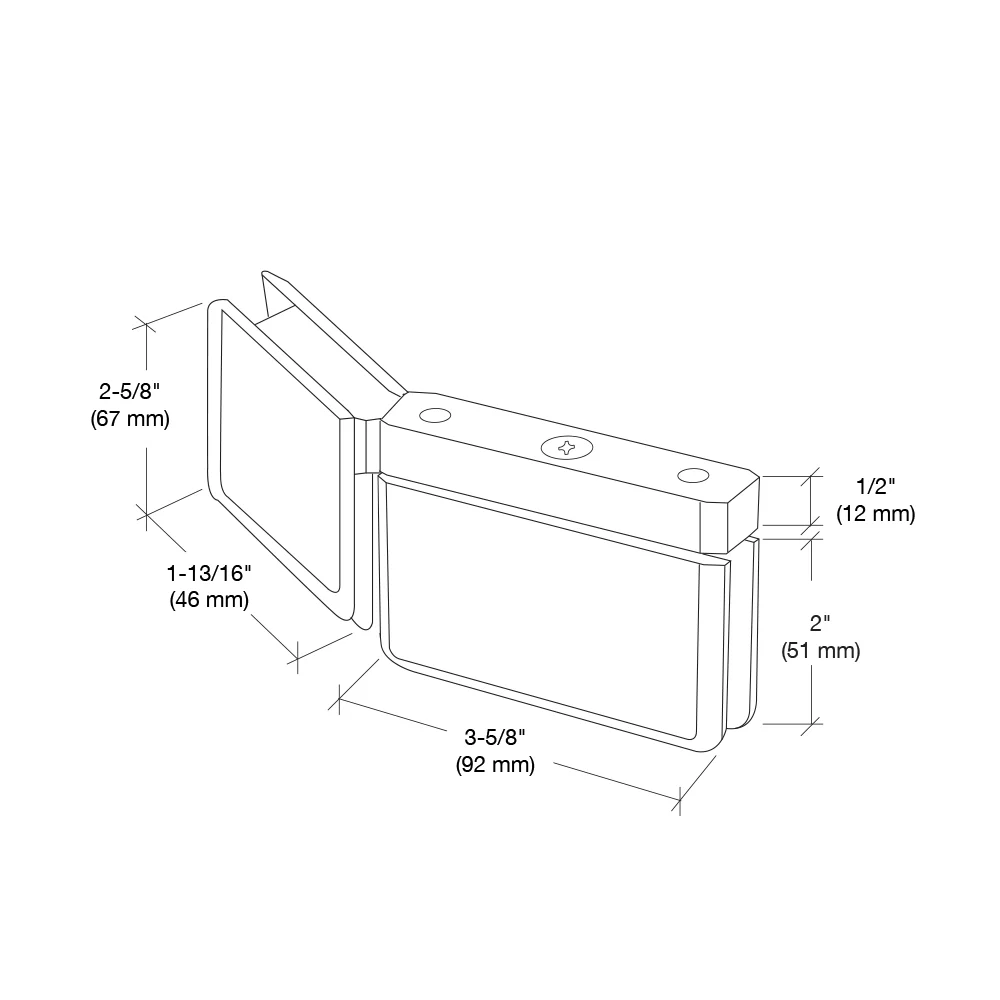

| Height | 2-5/8 in. (67 mm) |
| Height - Door Portion | 2 |
| Height - Sidelite Portion | 2-5/8 |
| Material | Brass |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight | 100 lbs. (45.4 kg) |
| Maximum Door Width | 31 in. (787 mm) |
| Mounting Type | Head & Sill Mount |
| Opening Style | Pivot(floor) |
| Self-Centering | Yes |
| Series | Prima |
| Width - Door Portion | 3-5/8 in. (92 mm) |
| Width - Sidelite Portion | 1-13/16 |
This hinge needs a corner notch 2-15/16" long x 1-1/2" deep, holes 1-7/8" apart in the tempered glass, per CRL's template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
Same cut-out (15): these fit the same glass.
Strong and reliable hinge. No play in the door and the finish looks consistent.
5/16" to 3/8" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
A corner notch 2-15/16" long x 1-1/2" deep, holes 1-7/8" apart, per CRL's glass template. Tempered glass can't be cut after it's made, so a replacement hinge has to fit the cut-out already in your glass.
The part that clamps onto the glass is 2-5/8" tall.
This is one pivot hinge. A pivot door turns on two: one at the top and one at the bottom of the door.
Pivot Shower Door Hinge – Prima 01 Top or Bottom Mount; Pivot Shower Door Hinge – Cardiff Top or Bottom Mount; Pivot Shower Door Hinge – Prima 06 EZ-Adjust Top Mount; Pivot Shower Door Hinge – Prima 01 #2 Pin, Top Right or Bottom Left; Pivot Shower Door Hinge – Prima 01 #1 Pin, Top Left or Bottom Right; Pivot Shower Door Hinge – Prima 05 Right Hand Offset Mount, and 9 more. Hinges that share a cut-out can replace each other on the same glass.
Polished Chrome, Brushed Nickel. Match the finish of the hinges and other hardware on your shower.
No. All sales are final, so please check your glass thickness, glass cut-out and finish before you order.
