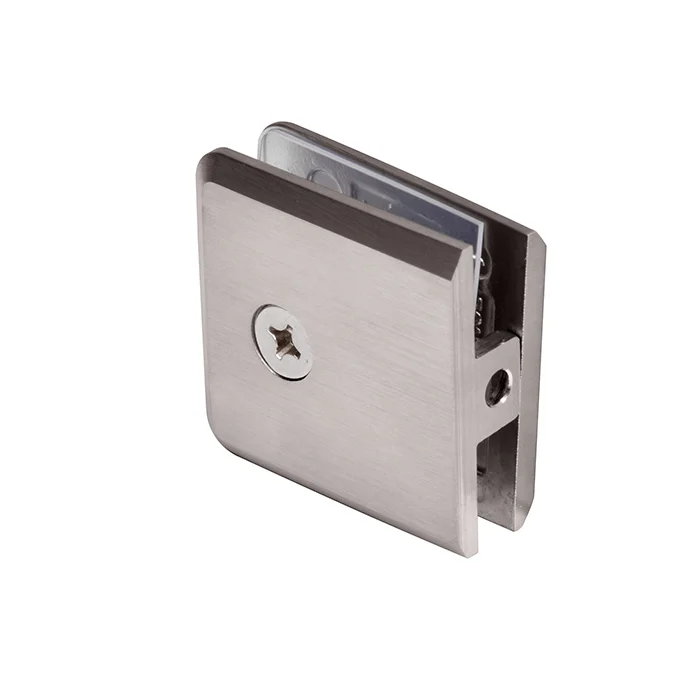

Beveled Hole-in-Glass Fixed Panel U-Clamp — Brushed Nickel
A heavy-duty beveled U-clamp that holds a fixed glass panel to the wall, floor or ceiling.
Temporarily out of stock at our supplier. You can still order; it ships when restocked.
About this clamp
The CRL Beveled Hole-in-Glass Fixed Panel U-Clamp is a U-clamp for frameless glass showers that holds a fixed glass panel to the wall, curb or floor; it fits 3/8" to 1/2" glass. Made by C.R. Laurence (CRL) in 18 finishes, including polished chrome, brushed nickel, matte black.

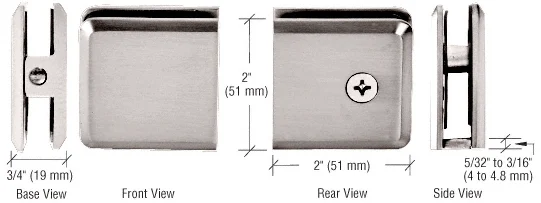

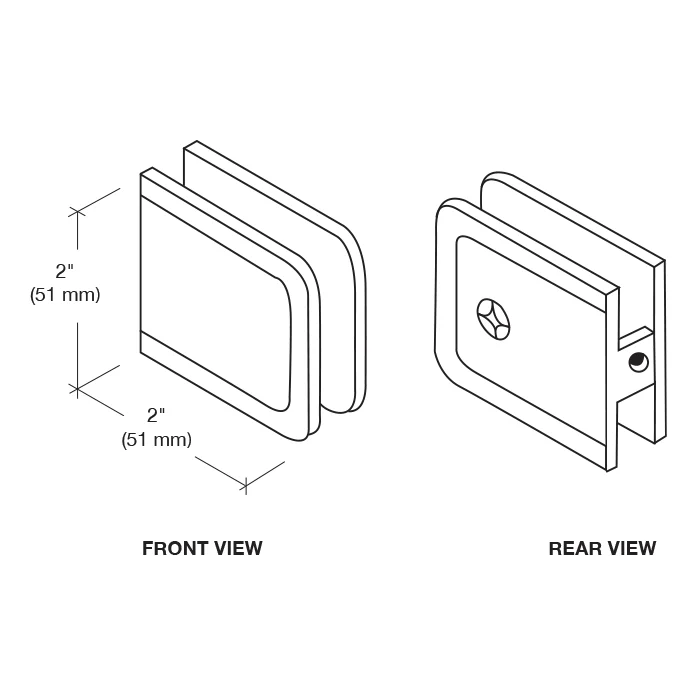

This beveled-edge clamp mounts to the wall, ceiling or floor and holds a vertical fixed glass panel through a hole drilled in the glass. It leaves a 3/16" (5 mm) gap between the glass and the wall, which you can fill with clear silicone. Solid brass, for 3/8" to 1/2" (10 to 12 mm) tempered glass, with mounting screws and gaskets included.
- Fits 3/8" to 1/2" (10 to 12 mm) glass
- Needs a 3/4" (19 mm) hole in the glass
- Beveled edges match beveled hinges
- 3/16" (5 mm) gap between glass and wall
- Mounting screws and gaskets included
Specs
| Finishes | 18 |
|---|---|
| Design Style | Beveled |
| Enclosure Type | Bathtub, Corner, Niche |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Material | Brass |
| Mounting Type | Wall / Ceiling Mount |
| Replacement Clamping Screw | P615CH |
Complete the look in Brushed Nickel
Common questions
What glass thickness does the CRL Beveled Hole-in-Glass Fixed Panel U-Clamp fit?
3/8" to 1/2" thick tempered glass. Measure your glass at a bare edge before you order; our measuring guide shows how.
How many clamps do I need?
This is one U-clamp. Most fixed panels use two or three clamps. Replace a worn clamp with the same style, size and finish so it lines up with the others.
What finishes does it come in?
Polished Chrome, Brushed Nickel, Matte Black, Polished Nickel, Satin Brass, Oil Rubbed Bronze, Brushed Bronze, Satin Nickel, Brushed Chrome, Polished Brass, Unlacquered Brass, Modern Gold, French Gold, Vintage Brass, Rose Gold, Matte Gun Metal, Dark Brushed Bronze, Antique Brushed Nickel. Match the finish of the hinges and other hardware on your shower.
Can I return it?
No. All sales are final, so please check your glass thickness, clamp style and finish before you order.
More like this
Match your holes, glass and finish.
Measure center to center between your existing holes and check your glass thickness. A new handle has to match both.
How to measure your glass →
